Philips TL-D/54-765 1SL/25
Product Description.

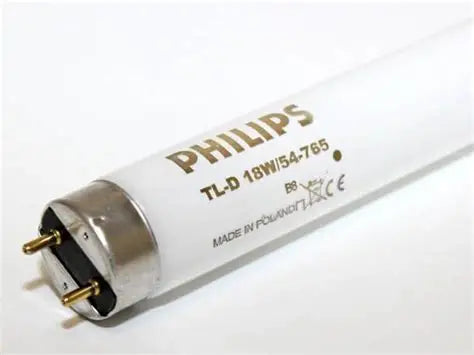

The Philips TL‑D 18W/54‑765 is a linear fluorescent tube lamp from the TL‑D Standard Colours range. It delivers cool daylight illumination with moderate color rendering and energy efficiency, making it suitable for offices, schools, workspaces, shops, and general indoor lighting. This tube uses a T8 (26 mm) design with a G13 medium bi‑pin base.
✅ Key Features
-
Lamp Type: Linear fluorescent tube (TL‑D Standard Colours)
-
Wattage: 18 W power consumption
-
Tube Shape & Size: T8 tubular design (26 mm diameter)
-
Base Type: G13 medium bi‑pin fluorescent socket
-
Light Output: Approx. 1,050 lumens
-
Color Temperature: ~6200 K Cool Daylight
-
Color Rendering Index (CRI): ~72
-
Lifespan: ~13,000 hours (to 50 % failures)
-
Dimmable: Yes (with compatible ballast)
-
Mercury Content: ~5 mg
-
Energy Consumption: ~22 kWh per 1000 h
-
Compatibility: Fits conventional TL‑D fixtures and ballasts
📊 Technical Specifications
| Specification | Value |
|---|---|
| Power Consumption | 18 W |
| Nominal Voltage | 59 V |
| Lamp Current | 0.360 A |
| Luminous Flux | ~1,050 lm |
| Correlated Color Temperature | ~6200 K |
| Color Rendering Index (CRI) | ~72 |
| Life to 50 % Failures | ~13,000 h |
| Base Type | G13 bi‑pin |
| Shape | T8 tube |
| Diameter | ~26 mm |
| Mercury (Hg) Content | ~5 mg |
Technical Specifications3 Model Options Matrix
| Wattage | Lumen Output | CCT | IP Rating | SKU Code |
|---|---|---|---|---|
| 18W - 36W | 050 LM - 500 LM | 6200K | IP65 | SKU-PH-FAM-137 |
| 18W | 050 LM | 6200K | IP65 | SKU-PH-1059-PHILIPS-TL-D-18W |
| 36W | 500 LM | 6500K | IP65 | SKU-PH-1060-PHILIPS-TL-D-36W |
