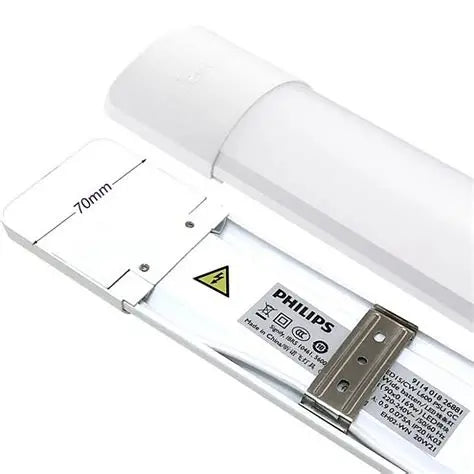

Philips Essential Smartbright Wide Batten BN005C,Symmetrical

Product Description.

The Philips Essential Smartbright Wide Batten BN005C 20 W is an LED linear batten luminaire designed for general indoor lighting needs. It’s part of Philips’ Essential Smartbright series — a value‑focused range that delivers efficient LED illumination with good color quality and reliable performance. The fixture has an integrated LED light source with a built‑in driver and is ideal for everyday applications in homes, offices, shops, corridors, and utility areas.

---

✅ Key Features

• Product Type: LED Wide Batten Luminaire (integrated LED)

• Model: BN005C

• Power Consumption: 20 W (LED)

• LED Engine: Integrated LED with electronic driver included

• Input Voltage: 220 – 240 V, 50/60 Hz

• Color Rendering Index (CRI): ≥ 80 (good color quality)

• Beam Angle: ~115° symmetrical wide distribution

• Warranty: ~2 years

• Operating Temperature: Typically –20 °C to +40 °C

• Suitability: Designed for random switching (non‑dimmable)

• Protection Class: Safety Class II (double insulation, no earth required)

• Ingress Protection: IP20 (indoor protection against solid objects but no water resistance)

• Housing: White polycarbonate (typical) / Opal diffuser

📌 Note: Different versions of BN005C that are 20 W may have slightly different luminous output depending on correlated color temperature (CCT), e.g., ~1,100 lm at 3000 K or ~2,200 lm at 4000–6500 K — see table below.

---

📊 Technical Specifications (Typical for 20 W BN005C)
