Osram Street Light
Product Overview

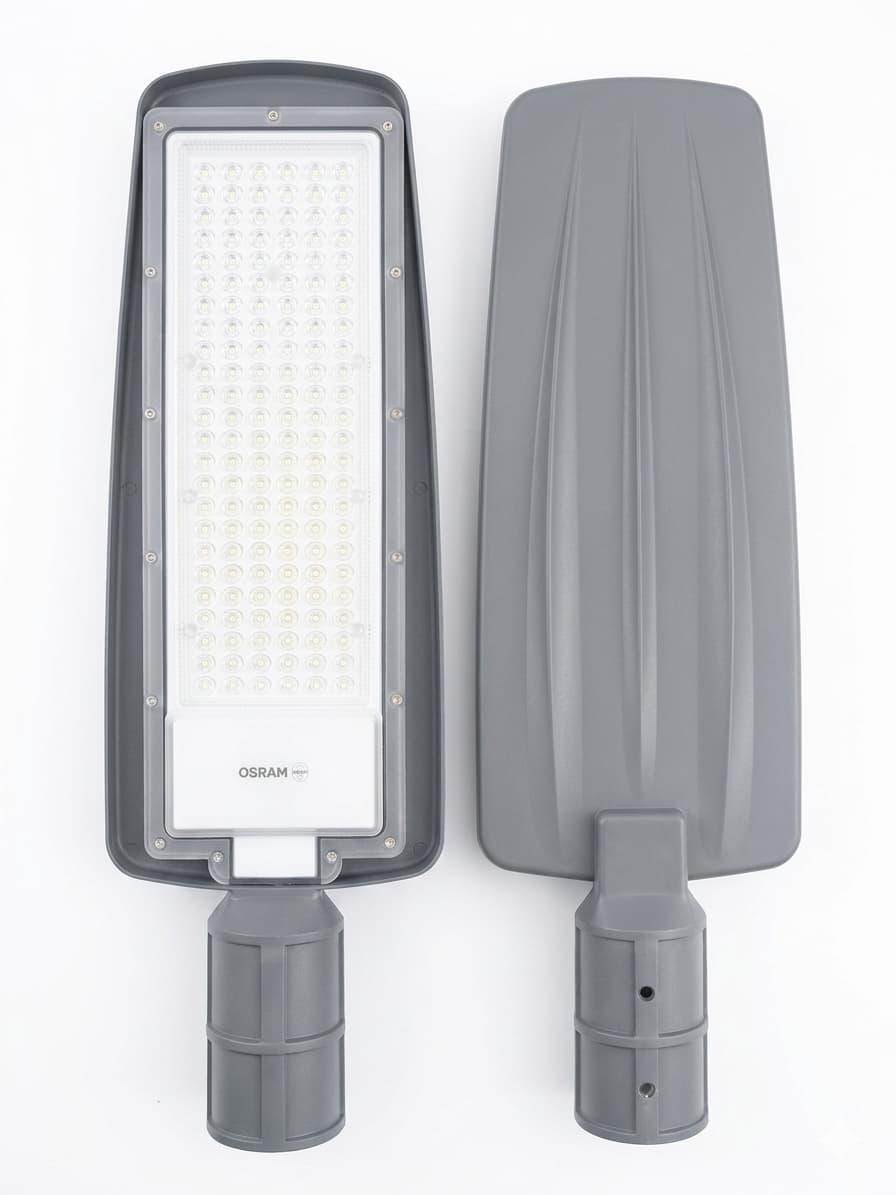

A 200W DOB (Driver-On-Board) LED street light with OSRAM chips is a high-capacity outdoor lighting solution designed for highways, large roads, industrial zones, and large open areas. It delivers powerful illumination while maintaining energy efficiency.
⭐ Key Features
- High efficiency (~100 lm/W) → strong brightness with controlled power usage
- OSRAM LED chips (SMD 2835/3030) → stable output and long life
- DOB technology (driverless) → fewer components, cost-effective design
- Very high lumen output → suitable for 35–45 ft pole height
- Energy saving → replaces ~400–600W conventional lights
- IP65/IP66 protection → outdoor weather resistance
- Heavy-duty die-cast aluminum housing → efficient heat dissipation
- Wide voltage input → stable in fluctuating power conditions
- Instant ON, no flicker
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Power | 200 Watt |
| LED Type | OSRAM SMD / DOB module |
| Luminous Efficiency | ~100 lm/W |
| Total Lumens | ~20,000 lumens |
| Input Voltage | 100–277V AC / 220–240V typical |
| Power Factor | >0.9 |
| Color Temperature (CCT) | 3000K / 4000K / 5700–6500K |
| CRI | >70–80 |
| Beam Angle | 70°×140° / 90°–120° |
| IP Rating | IP65 / IP66 |
| Housing Material | Die-cast aluminum |
| Surge Protection | 6–10 kV (typical high-watt models) |
| Working Temperature | -20°C to +50°C |
| Lifetime | 30,000–50,000 hours |
| Mounting Type | Pole mount (side entry Ø60mm typical) |
🧠 DOB Technology (Quick Explanation)
- Driver integrated on LED board
- No external driver box
- Lower cost and simpler design
- Common in budget to mid-range high-watt street lights
🛠️ Applications
- Highways & express roads
- Industrial zones & factories
- Large parking areas
- Airports & terminals
- Stadium surroundings
- Warehouses & logistics yards
Authorized Primary B2B Channel
Technical Specifications6 Model Options Matrix
| Wattage | Lumen Output | CCT | IP Rating | SKU Code |
|---|---|---|---|---|
| 200W - 100W | 100 LM - 130 LM | 3000K | IP65 | SKU-OS-FAM-104 |
| 30W | 100 LM | 3000K | IP65 | SKU-OS-1008-OSRAM-30W-STREET |
| 50W | 100 LM | 3000K | IP65 | SKU-OS-1007-OSRAM-50W-STREET |
| 100W | 130 LM | 5700K | IP65 | SKU-OS-1015-OSRAM-100W-STREE |
| 150W | 100 LM | 3000K | IP65 | SKU-OS-1006-OSRAM-150W-STREE |
| 200W | 100 LM | 3000K | IP65 | SKU-OS-1005-OSRAM-200W-STREE |
