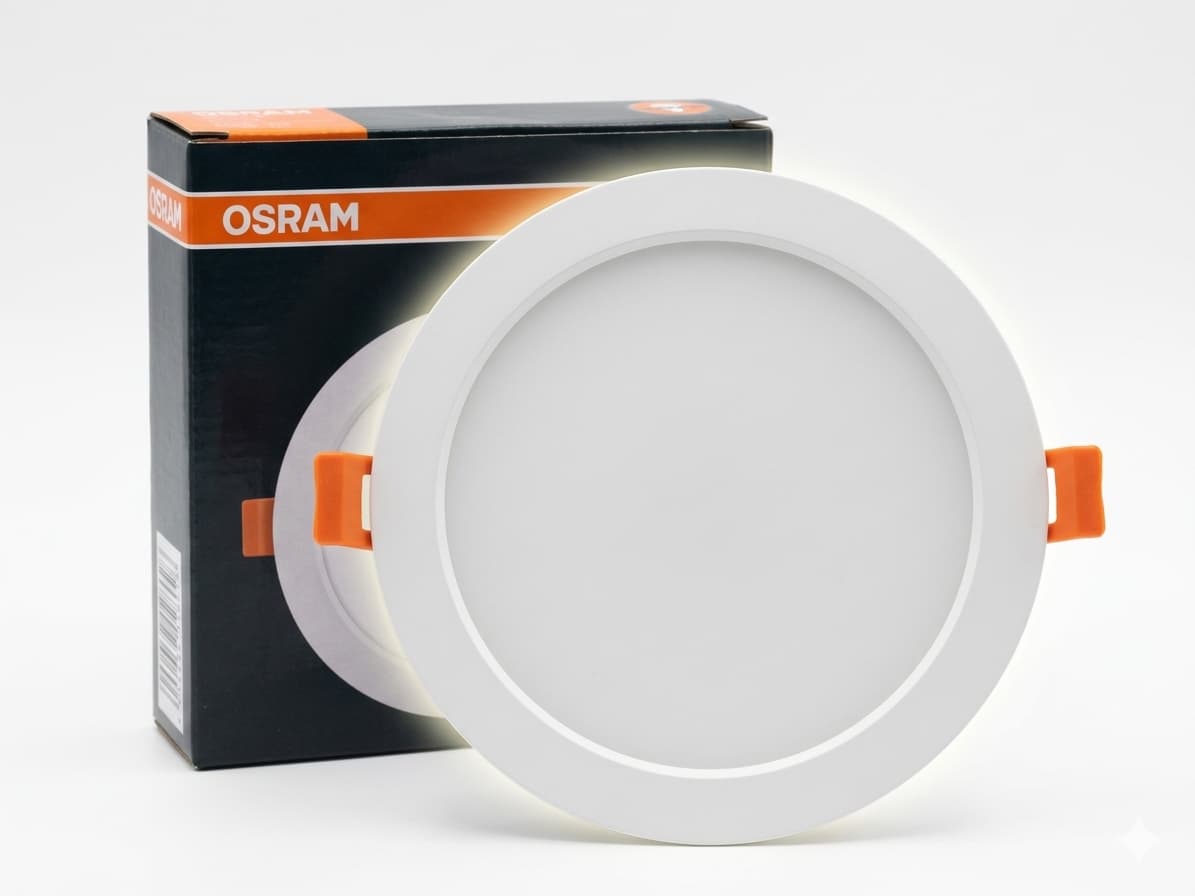

Osram Smd Light
Product Details
- Brand: OSRAM / LEDVANCE
- Type: LED Ceiling Panel / Downlight
- Power: 18 Watts
- LED Type: SMD (OSRAM chips, usually SMD 2835)
- Shape: Round / Square slim panel
- Mounting: Recessed (false ceiling) or surface-mounted
- Application: Indoor lighting (homes, offices, commercial areas)
⭐ Key Features
- High Brightness Output: Suitable for main lighting in larger rooms
- Energy Efficient: Saves up to 60% vs CFL fixtures
- Uniform & Glare-Free Light: Smooth and wide illumination
- Slim & Modern Design: Fits easily into false ceilings
- Integrated Driver: Easy and quick installation
- Long Lifespan: Around 30,000 hours
- Multiple Color Options: 3000K / 4000K / 6500K
- Low Heat & Eco-Friendly: Safe and mercury-free
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| Power | 18W |
| Input Voltage | 220–240V AC |
| Luminous Flux | ~1200–1530 lumens |
| LED Type | SMD 2835 (OSRAM chip) |
| Color Temperature | 3000K / 4000K / 6500K |
| CRI | ≥80 |
| Beam Angle | ~120° |
| Lifespan | ~30,000 hours |
| Material | Polycarbonate / Aluminum |
| Size | ~200–225 mm diameter |
| Mount Type | Recessed / Surface |
| IP Rating | IP20 (indoor use) |
💡 Where It Is Used
- Living rooms (medium to large)
- Bedrooms (large)
- Offices & shops
- Kitchens & halls
Authorized Primary B2B Channel
Technical Specifications4 Model Options Matrix
| Wattage | Lumen Output | CCT | IP Rating | SKU Code |
|---|---|---|---|---|
| 18W - 7W | 1530 LM - 600 LM | 3000K | IP20 | SKU-OS-FAM-112 |

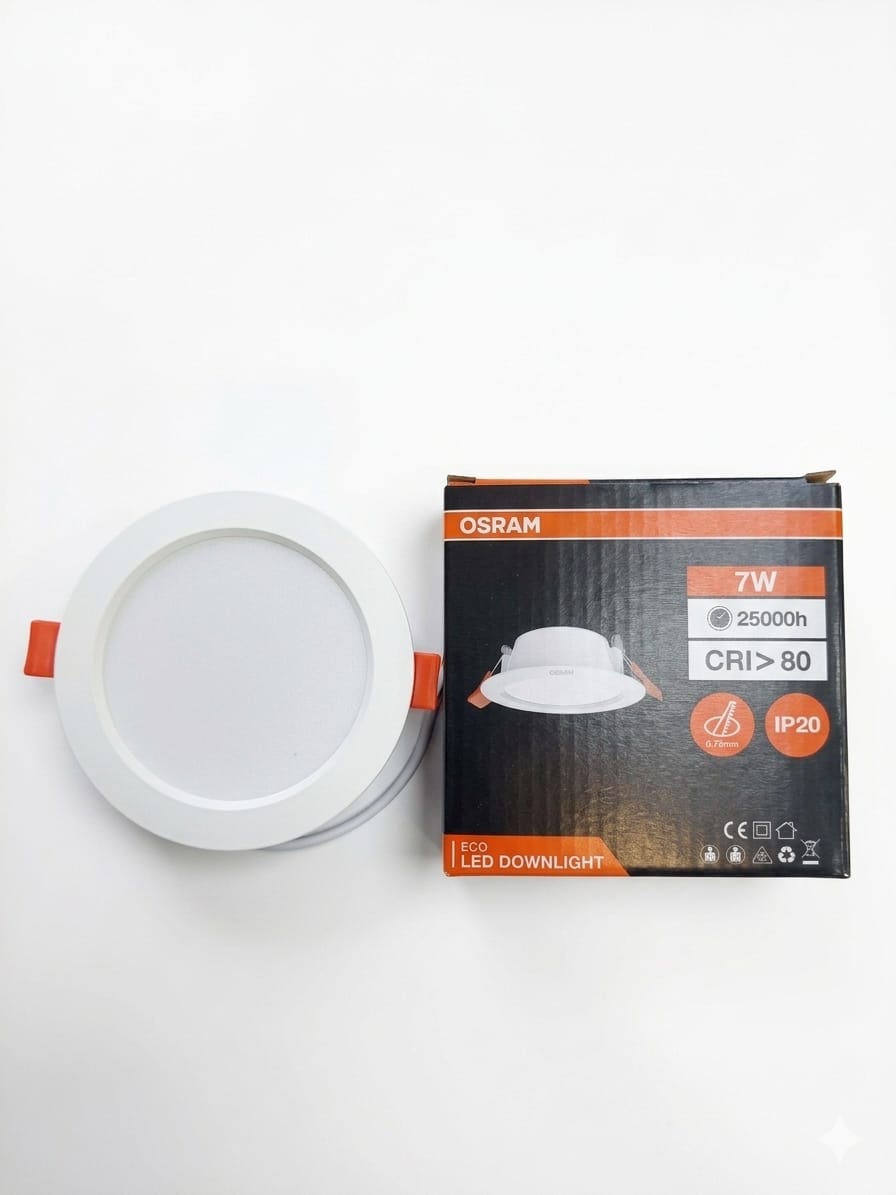

| 7W | 600 LM | 3000K | IP20 | SKU-OS-1022-OSRAM-7W-SMD-LIG |

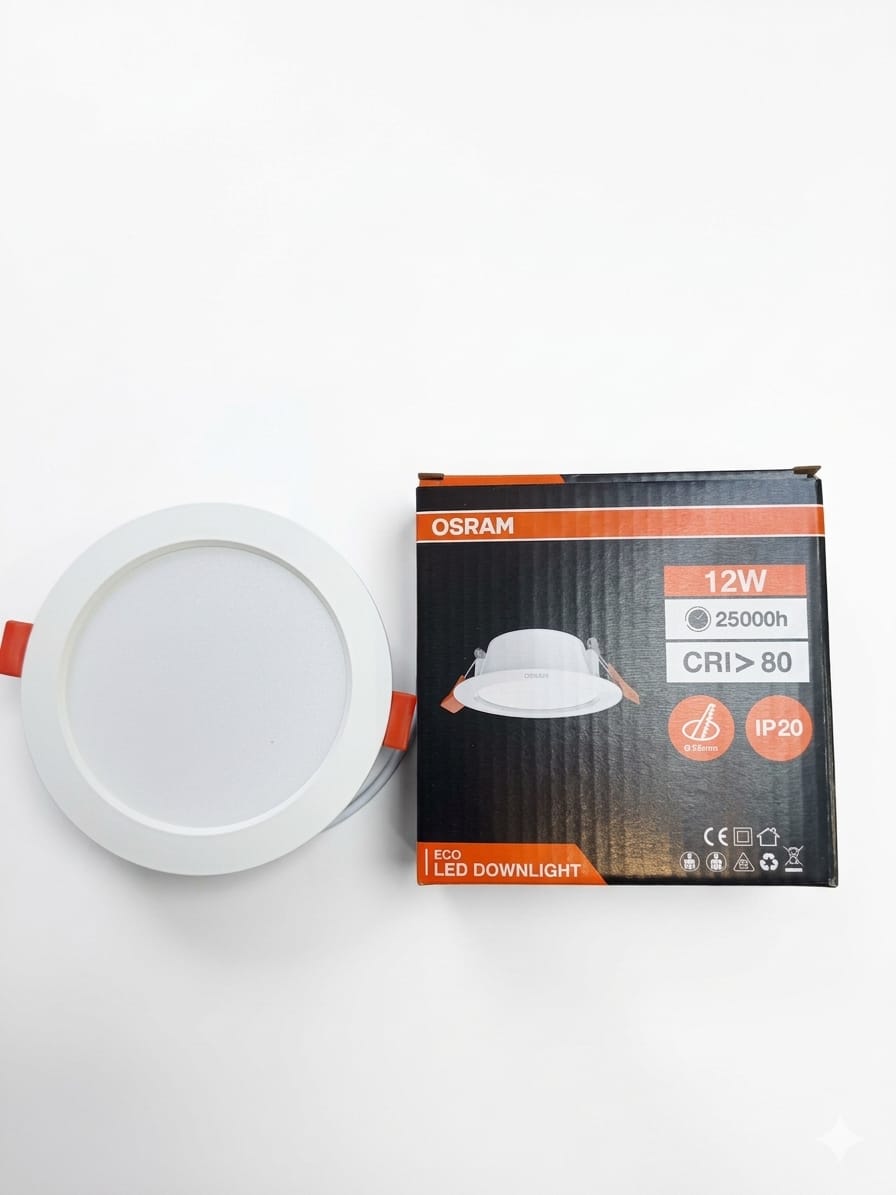

| 12W | 1020 LM | 3000K | IP20 | SKU-OS-1021-OSRAM-12W-SMD-LI |
| 18W | 1530 LM | 3000K | IP20 | SKU-OS-1020-OSRAM-18W-SMD-LI |
