Osram Pc tube rod

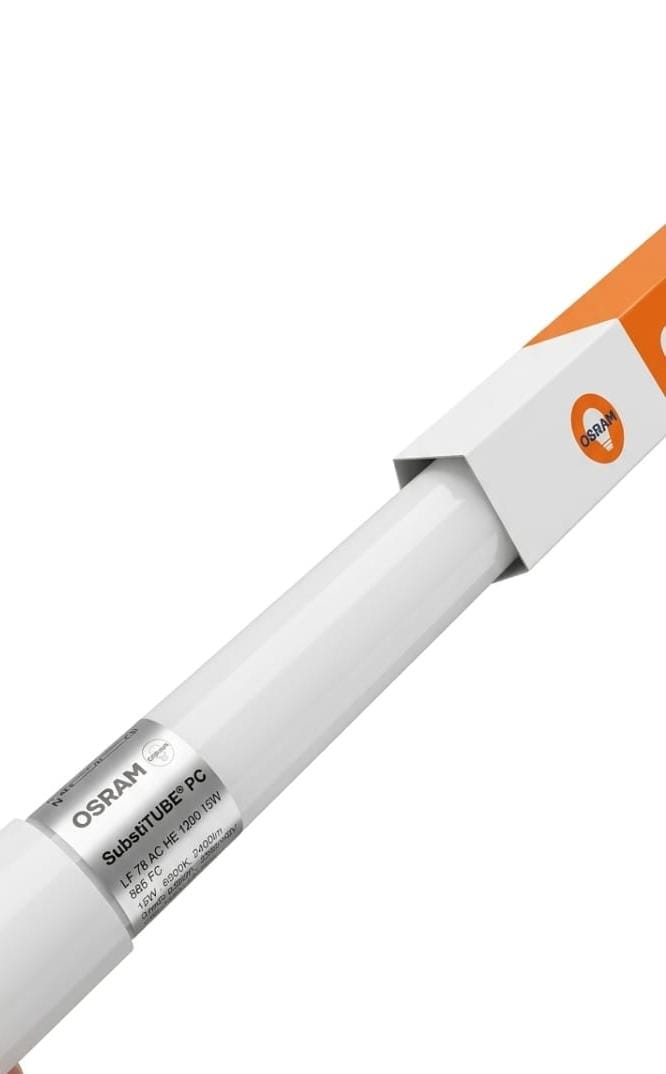

OSRAM 15 W PC LED Tube (T8) – Product Details
This is an OSRAM LED T8 tube lamp with a 15 W power rating, designed to replace conventional fluorescent T8 tubes (~36 W) while offering energy savings and durable performance. The tube typically has a polycarbonate (PC) housing for enhanced break resistance.
🟦 Key Features
- Energy‑efficient LED tube: Uses just 15 W but replaces higher‑wattage fluorescent tubes (~36 W) for significant energy savings.
- G13 bi‑pin base: Standard connection matches most T8 fixtures.
- Polycarbonate (PC) Housing: Very break‑resistant and lighter than glass, improving durability.
- Good colour rendering: CRI typically ≥ 80 for accurate colour appearance.
- Long life: Designed for about 30,000 h average service life.
- Wide temperature range: Operates in a range from roughly –20 °C to +45 °C (varies by variant).
- Immediate, flicker‑free start: Instant ON without warm‑up delay.
- Mercury‑free and RoHS compliant: Safer for environment and disposal.
📊 Typical Specifications
| Specification | Details |
|---|---|
| Nominal Power | 15 W |
| Lamp Type | LED T8 Tube (PC housing) |
| Base | G13 bi‑pin |
| Replacement For | ~36 W fluorescent T8 |
| Input Voltage | 220–240 V AC, 50/60 Hz |
| Luminous Flux | ~1 620 – 1 800 lm (varies with CCT) |
| Colour Temperature | Options: Warm White (~3000 K) or Daylight (~6500 K) |
| Colour Rendering Index (CRI) | ≥ 80 |
| Beam Angle | Standard (~160–180°) (typical for T8 tubes) |
| Housing Material | Polycarbonate (PC) |
| Length | ~1200 mm (~1.2 m) |
| Diameter | ~26.8 mm |
| Lifetime | ~30,000 h (approx.) |
| Power Factor | > 0.9 |
| Dimmable | No (standard) |
| Operating Temperature | ~–20 °C to +45 °C |
| Weight | ~115–120 g |
| Protection Class | IP20 (indoor use – open fixtures) |
Authorized Primary B2B Channel
Technical Specifications
Wattage15W
Lumen Output800 LM
Color Temperature (CCT)3000K
Ingress Rating (IP)IP20
Warranty5 Years Manufacturer
