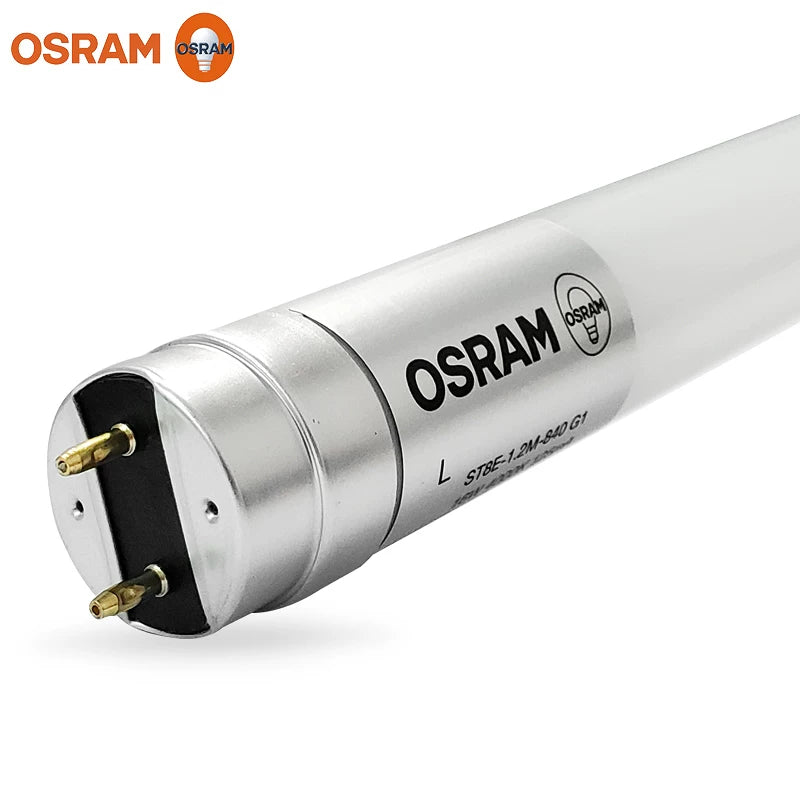

Osram Led T8 Glass Rod
Product Description
The OSRAM T8 LED Tube 20W (1200mm) is a high-efficiency replacement for traditional 36W fluorescent tube lights. It delivers ~2400 lumens brightness with significantly lower energy consumption and longer lifespan.
It is designed for direct retrofit in existing T8 fittings with G13 base, commonly used in offices, shops, and homes.
⭐ Key Features
- High brightness (~2400 lumens) – ideal for commercial & residential lighting
- Energy saving (20W vs 36W fluorescent) – up to 40–60% lower consumption
- 1200mm (4ft) standard size – fits common tube fixtures
- Instant start (<0.5 sec) – no flicker or delay
- High efficiency (~120 lm/W) – bright with low power
- Mercury-free & eco-friendly
- Long lifespan (up to 30,000 hours)
📊 Technical Specifications
| Specification | Details |
|---|---|
| Brand | OSRAM |
| Type | T8 LED Tube (SubstiTUBE / LEDVANCE) |
| Power Consumption | 20W |
| Length | 1200 mm (4 ft) |
| Luminous Flux | ~2400 Lumens |
| Efficiency | ~120 lm/W |
| Equivalent Fluorescent | 36W T8 tube |
| Base Type | G13 (bi-pin) |
| Voltage | 220–240V AC |
| Color Temperature | 4000K / 6500K (cool white/daylight) |
| CRI | ≥80 |
| Beam Angle | ~190° |
| Dimmable | No |
| Material | Glass or plastic housing (model dependent) |
| Lifetime | Up to 30,000 hours |
| Switching Cycles | ~200,000 |
| Operating Temp | -20°C to +45°C |
🔧 Installation Type
- EM (Choke / Starter compatible) OR
- Direct AC mains (ballast bypass)
👉 Depends on model (EM / HF / Mains version)
🏢 Applications
- Offices & commercial spaces
- Shops & supermarkets
- Schools & hospitals
- Homes (tube light fittings)
- Parking areas & corridors
Authorized Primary B2B Channel
Technical Specifications
Wattage20W
Lumen Output2400 LM
Color Temperature (CCT)4000K
Ingress Rating (IP)IP65
Warranty5 Years Manufacturer
