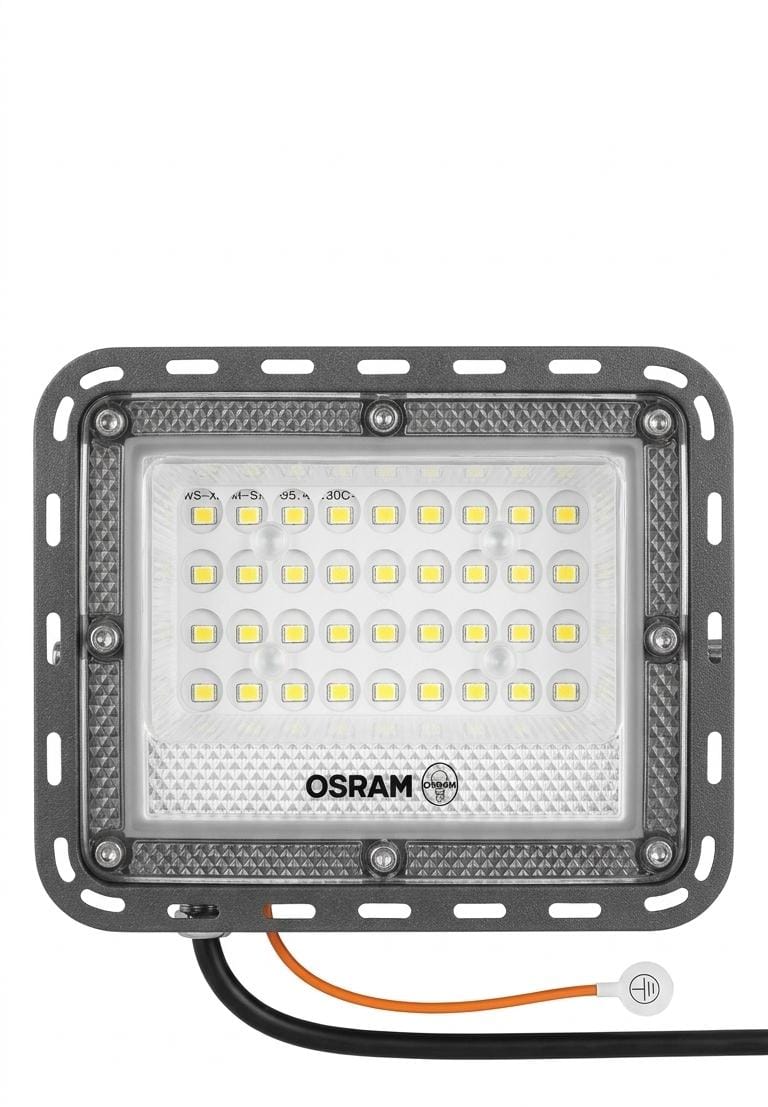

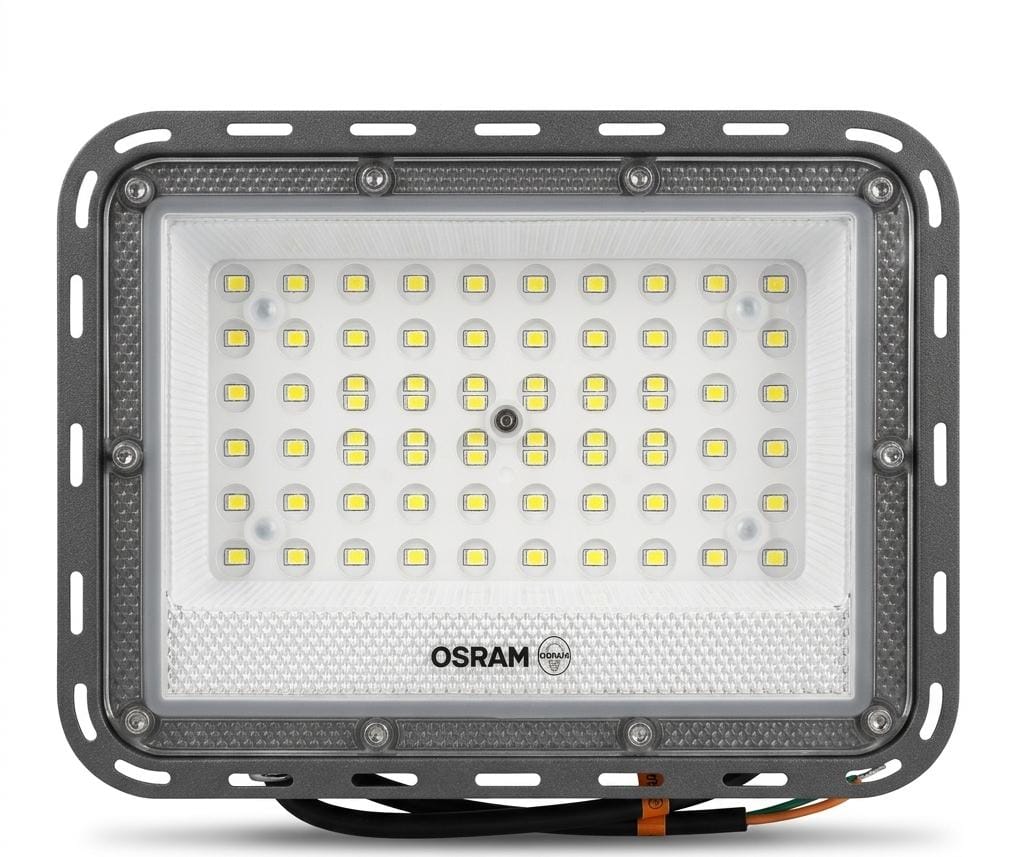

Osram Led Flood Light
Product Overview
A 200W OSRAM DOB LED flood light is a high-power outdoor lighting solution designed for large areas like grounds, warehouses, stadiums, and industrial zones. It uses driver-on-board (DOB) technology, meaning the driver is integrated into the LED board for compact design and fewer failure points.
⭐ Key Features
-
Ultra High Brightness
- Produces around 20,000 – 28,000 lumens depending on model
-
OSRAM LED Chips (High Quality)
- Typically uses OSRAM SMD 3030 / 2835 chips
- Some models feature triple-core 3030 chips for higher efficiency
-
DOB (Driver On Board) Technology
- No external driver required
- Compact design with fewer components
- Reduced maintenance and cost
-
High Energy Efficiency
- Saves up to 80% energy vs halogen/metal halide lights
-
Heavy-Duty Outdoor Design
- IP65 / IP66 waterproof (dust & rain resistant)
- Suitable for extreme outdoor conditions
-
Durable Construction
- Die-cast aluminum body with anti-corrosion coating
- Strong heat dissipation for long life
-
Long Lifespan
- Up to 50,000 hours operating life
⚙️ Technical Specifications
| Specification | Typical Value |
|---|---|
| Power | 200 Watts |
| LED Type | SMD 2835 / 3030 OSRAM |
| Technology | DOB (Driver On Board) |
| Luminous Flux | 20,000 – 28,000 lumens |
| Efficiency | 110 – 180 lm/W |
| Input Voltage | AC 90–265V / 220–240V |
| Frequency | 50/60 Hz |
| Power Factor | ≥ 0.90 |
| Color Temperature | 3000K / 4000K / 6500K |
| Beam Angle | 60° / 90° / 120° |
| IP Rating | IP65 / IP66 |
| Material | Die-cast Aluminum + Toughened Glass |
| Operating Temp | -20°C to +50°C |
| Lifespan | 30,000 – 50,000 hours |
| CRI | ≥ 70–80 |
| Surge Protection | 4–6 kV |
🔧 Applications
- Stadiums & sports grounds
- Warehouses & factories
- Parking lots & highways
- Large outdoor areas & yards
- Building exteriors & security lighting
Authorized Primary B2B Channel
Technical Specifications6 Model Options Matrix
| Wattage | Lumen Output | CCT | IP Rating | SKU Code |
|---|---|---|---|---|
| 200W - 30W | 000 LM - 3900 LM | 3000K | IP65 | SKU-OS-FAM-107 |
| 30W | 3900 LM | 3000K | IP65 | SKU-OS-1040-OSRAM-LED-FLOOD- |
| 50W | 130 LM | 3000K | IP65 | SKU-OS-1039-OSRAM-LED-FLOOD- |
| 100W | 000 LM | 3000K | IP65 | SKU-OS-1012-OSRAM-LED-FLOOD- |
| 150W | 000 LM | 4000K | IP65 | SKU-OS-1038-OSRAM-LED-FLOOD- |
| 200W | 000 LM | 3000K | IP65 | SKU-OS-1011-OSRAM-LED-FLOOD- |
